- Durable phenolic diaphragm offers smooth, more natural sound
- Large 3" voice coil with Kapton Former ensures better thermal dissipation
- Ferrite magnet heavier than neodymium

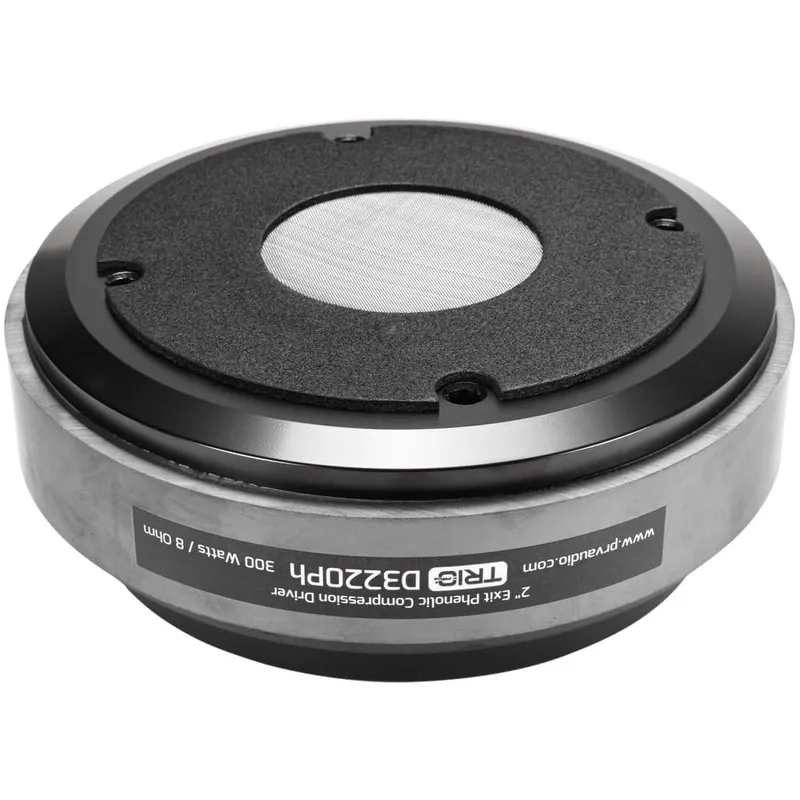

Descrizione del prodotto PRV Audio D3220Ph Compression Driver
Designed for high-performance audio applications, the PRV Audio D3220Ph is a professional-grade 2" exit compression driver built with a 3" voice coil and a phenolic diaphragm. Delivering outstanding power and clarity, this driver is ideal for demanding PA systems and custom loudspeaker builds.
Highlights of the PRV Audio D3220Ph
- High-efficiency driver with 108 dB sensitivity at 1W/1m
- Handles 150W RMS and 300W continuous program power
- 3" CCAW voice coil on a Kapton® former for improved thermal handling
- Durable phenolic diaphragm and robust ferrite magnet design
Product details PRV Audio D3220Ph
PRV Audio D3220Ph Compression Driver
The PRV Audio D3220Ph is engineered for audio professionals seeking powerful performance and long-lasting reliability. Featuring a large 3" CCAW voice coil mounted on a heat-resistant Kapton® former, this driver ensures high efficiency and minimal distortion, even under continuous high power. With a 2" (50 mm) exit throat and 8-ohm impedance, the D3220Ph is compatible with a wide range of horns and crossover configurations.
It delivers 150 watts RMS and peaks at 600 watts, making it suitable for large venue sound reinforcement systems. The phenolic diaphragm provides smooth, natural response across its wide usable frequency range of 650 Hz to 7,500 Hz. Recommended to be used with an 800 Hz, 12 dB/oct high-pass crossover, the D3220Ph ensures durability and optimal performance when integrated into full-range systems.
Its rugged ferrite magnet assembly produces a flux density of 1.77 T, while the overall compact design (145 mm diameter, 76 mm depth) allows easy installation. Weighing just 4 kg, this driver strikes a balance between portability and robust build quality. Whether you're designing a new PA system or upgrading existing gear, the D3220Ph is built to deliver clean mids and articulate highs in even the most demanding environments.
To support long-term reliability and easy maintenance, we offer a matching replacement diaphragm. The PRV Audio RPD3220Ph Replacement Diaphragm allows quick restoration of original performance and extending the service life of the compression driver.
Compatible with:
- PRV Audio WG45-50 Waveguide
- PRV Audio WGP14-50X SLIM Waveguide
- PRV Audio WGP22-50X BLACK Waveguide
