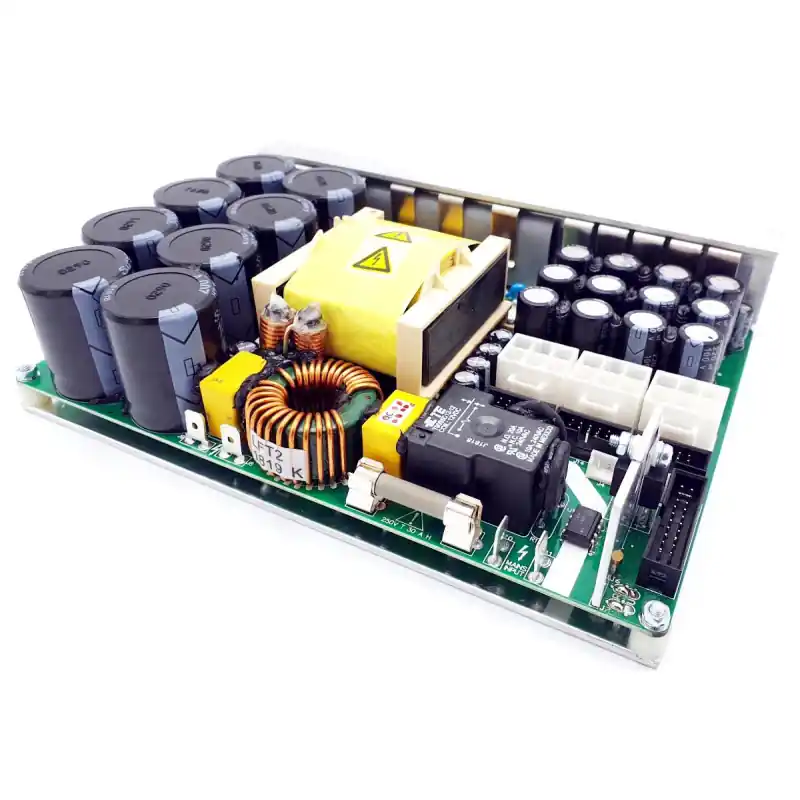

| Switching Power Supply Hypex - 85V 3000W |
Hypex - SMPS3KA700
DataSheet - SMPS3KA700 Modello 3D - SMPS3KA700
*To view the 3D Model correctly, download the PDF files to your Desktop computer before opening the files, as system browsers do not support 3D rendering modeling files.
The SMPS3k Power Supply is a 3000W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.
General Features:
Advanced over current protection;
Remote controlled operation;
Low weight;
Compact;
Fixed output voltage (2 models available).
Electrical Features:
High Line Input Voltage: 180-264Vac;
Low Line Input Voltage: 90-132Vac;
Output Voltage: 2x85Vdc;
Max. Output power: 3600W;
Max. Output power: 3000W @20Hz;
Switching Frequency: 100kHz.
HighLights:
High efficiency;
Selectablel input voltage range;
Low EMI.
Technical Features SMPS3KA700
| Parameters | Specifications |
| Mains voltage input |
230 Volt AC/50Hz +/- 10% (switch able to 115Volt 60Hz) |
| Automatic input voltage selection | No, Selectable with jumper |
| SMPS Voltage +/- | 2x85Vdc |
| Max: Output power | 3600W |
| Max: Output power @ 20Hz | 3000W |
| Dimensions mm | 200*145*55mm |
| Weight | 1,5 Kg |
What is included in the box:
SMPS3kA700;
Manual.
Applications:
Supply for single or multiple amplifiers of the UcD range;
Active loudspeakers.
| Brand | Hypex |
| Type | Power Supply |
| Voltage Output (V) | 85 |
| Max Power (Watt) | 3000 |
