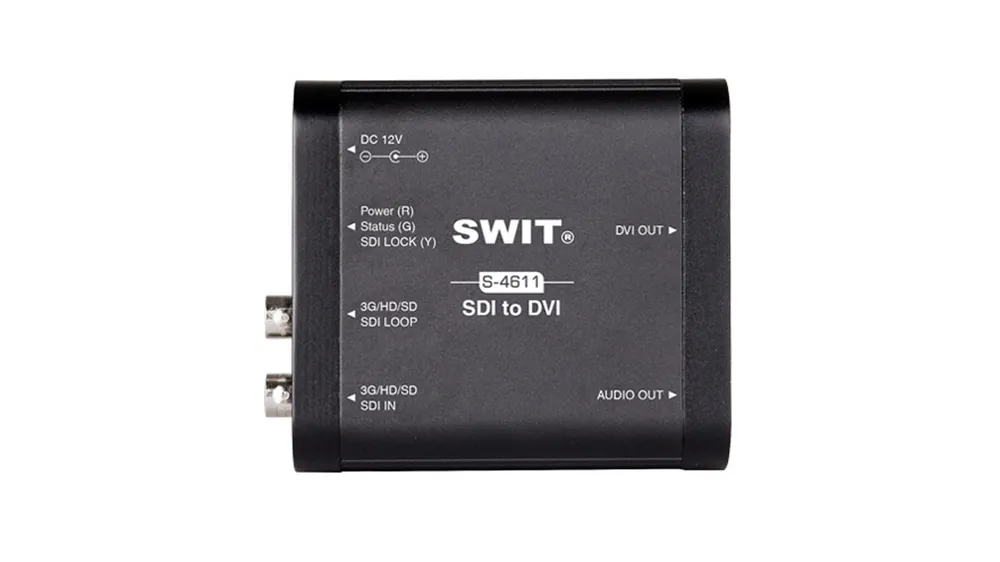

The Swit S-4611 portable SDI/DVI converter is a mini SDI to DVI converter (DVI-D connector, 18+1), which can be widely used to display SDI video transmitted at up to 3Gb/s on DVI monitors, televisions, LED boards or projectors. Built-in SDI ch-1 and ch-2 audio can be converted to HDMI and sent via the 3.5 mm headphone jack and supports a 48 kHz sampling rate. The S-4611 has 3 LED indicators, to check whether power is connected and whether input/output signal is being supplied. The mini converter is powered by a DC plug socket. The package includes an AC-DC power adapter; you can also connect the DC cable from 6-18V batteries. The S-4611 mini converter adopts a unique aluminum alloy body, which is sturdy for field use and effectively protects the BNC connectors. The S-4611 has 1/4-inch bottom thread for attaching to cameras, and an A-IP00 installation plate for wall mounting and BNC/HDMI cable connection is provided in the package.
| Weight | 209 g |
| Dimensions | 9,8 x 8,4 x 2,9 cm |
| Input | BNC ×1 3G/HD/SD-SDI input |
| Output | BNC ×1 3G/HD/SD-SDI loop output DVI-D ×1 Converted DVI output 3.5mm ×1 SDI audio output |
| Format | SDI 1080p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080psf (30 / 29.97 / 25 / 24 / 23.98), 720p (60 / 59.94 / 50), 480i (59.94), 576i (50) DVI 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50), 720p (60 / 59.94 / 50), 480i / 576i |
| Consumption | 3W |
| Power | DC 6-18V |
| Whats in the box | 1 x Swit S-4611 1 x Mounting plate 1 x AC-DC Adapter |
