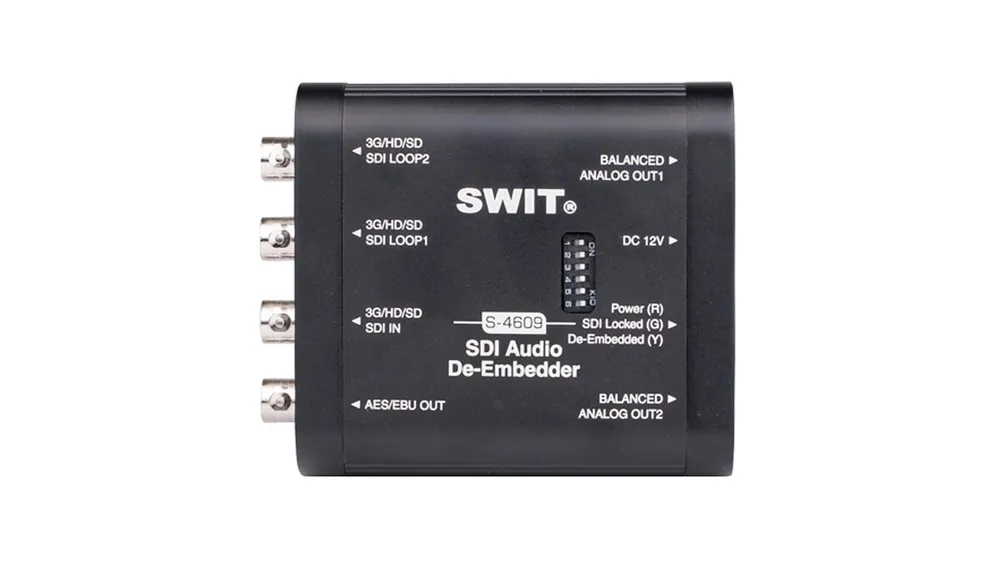

The Swit S-4609 SDI audio mini converter is a portable mini SDI audio de-embedder converter,that supports up to 3Gb/s SDI and can be widely used in field production and professional audio/video conversion and transmission. The S-4609 can de-embed any 2-channel audio from the first embedded 8-channel SDI audio. The user can select the channel number to de-embed from the 6 switchers on the front panel of the product. On the back, the S-4609 provides the of the 6 switchers for reference. The S-4609 has 3 LED indicators to check whether power is connected, whether SDI input is recognized, and whether de-embedded audio is being delivered. The mini converter is powered by a DC plug-in socket. The package includes an AC-DC power adapter, and you can also connect the DC cable from 6-18V batteries. The S-4609 mini converter adopts an aluminum alloy unibody housing, which is robust for field use and can effectively protect the audio/video connectors. The S-4609 has 1/4-inch bottom thread for attaching to cameras, and an installation plate for wall mounting and BNC/audio cable connection is provided in the package.
| Weight | 235 g |
| Dimensions | 9,8 x 8,4 x 2,9 cm |
| Input | BNC ×1 3G/HD/SD-SDI input |
| Output | BNC ×2 3G/HD/SD-SDI loop output x2 BNC x1 AES/EBU digital audio output ×1 6.35mm ×2 Analog audio output (balanced) ×2 |
| Video format | SDI 1080p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080psf (30 / 29.97 / 25 / 24 / 23.98), 720p (60 / 59.94 / 50), 480i (59.94), 576i (50) |
| Audio format | Digital audio AES/EBU 5Vp-p 48KHz Analog audio Max output +24dbu 20Hz-20KHz |
| Consumption | 3W |
| Power | DC 6-18V |
| Whats in the box | 1 x Swit S-4609 1 x Mounting plate 1 x AC-DC Adapter |
