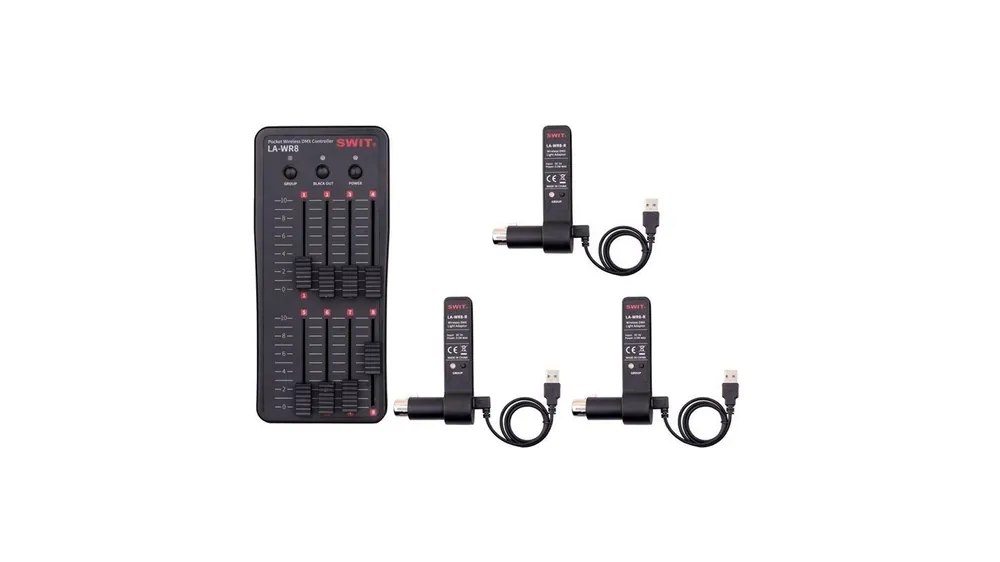

The Swit LA-WR8 Tx+3Rx pocket wireless DMX console is a portable wireless DMX controller for field light kit application, compatible with all standard DMX512 protocol lights, which eliminates complex DMX cables and large DMX consoles and makes field light kit control easier and faster. Adopts 2.4G wireless transmission, fast connection, plug and play, anti-interference, transmission distance of 400 meters in line of sight. One controller can be connected to multiple light adapters. LA-WR8 adopts standard DMX512 protocol, 8 faders and 7 switching groups with 7-color indicator. (Total 56 DMX channels) The color of the control group is the same as the light adapters, which can be connected and controlled. The light adapter has a standard 5-pin DMX connector, compatible with all standard 5-pin DMX lights. The controller can be powered by 2 AA batteries, for continuous operation of 4 hours. It supports sleep mode if not used after 1 minute. The controller also supports Micro USB power input. A USB power bank can be used to power the controller. The light adapter is USB powered, with only 0.5W power. Professional lights such as Skypanel, SWIT series PL-E, FL-C have a USB socket on the light.
| Weight | Tx: Approx. 274 g Rx: Approx. 47 g |
| Dimensions | Tx: 18, 4 x 8,4 x 2,2 cm Rx: 11 x 7 x 1,2 cm |
| Model | Tx: LA-WR8 Rx: LA-WR8-R |
| Wireless | 2.4G transmission |
| Input voltage | Tx: 2 AA batteries or 5V Micro USB Rx: 5V micro USB |
| Consumption | Tx: 1W Rx: 0,5W |
| Whats in the box | 3 x Receiver, with USB cables LA-WR8-R 1 x Controller, with USB cable LA-WR8 |
