Descrizione
Descrizione del prodotto
Vantaggi e svantaggi
Secondo i nostri esperti
- Polyimide diaphragm with large 2.5 Voice Coil provides dynamic output with excellent efficiency
- Compact design makes it easy to integrate into shallow enclosures
- Ferrite magnet adds more weight compared to neodymium alternatives

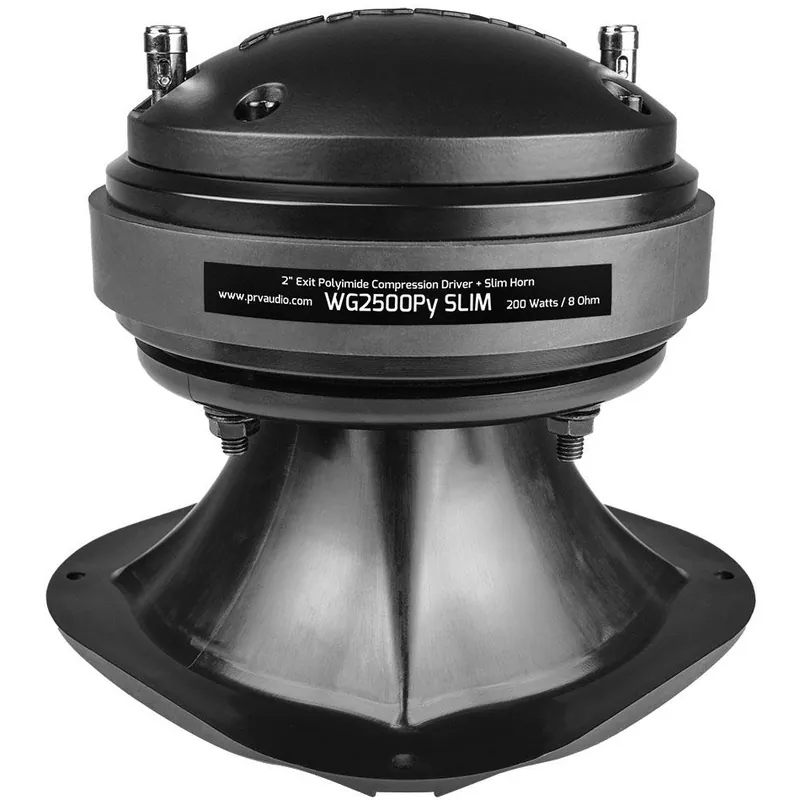

Descrizione del prodotto PRV Audio WG2500Py SLIM Compression Driver
The PRV Audio WG2500Py SLIM is a professional compression driver (D2500Py) and waveguide combination engineered for high-output sound reinforcement and DIY loudspeaker projects. With a slim profile and high sensitivity, it delivers clear and controlled high frequencies in compact enclosures.
Highlights of the PRV Audio WG2500Py SLIM
- High efficiency compression driver with 107 dB sensitivity for powerful output.
- 2.5 inch voice coil combined with a 2 inch exit throat for improved power handling.
- Slim mechanical design optimized for compact loudspeaker cabinets.
- Supplied with WGP14-50X SLIM waveguide for controlled dispersion.
Product details PRV Audio WG2500Py SLIM
PRV Audio WG2500Py SLIM Professional Compression Driver
The PRV Audio WG2500Py SLIM is designed for professional audio systems requiring high sound pressure levels and reliable performance. It features an 8 ohm nominal impedance and a nominal power handling of 100 watts, with 200 watts RMS program power and up to 400 watts peak power capability. This makes it suitable for demanding mid-high frequency applications in PA systems and custom loudspeaker builds.
The driver uses a 63.5 mm voice coil wound with CCAW wire on a Kapton former, combined with a polyimide diaphragm for durability and consistent performance. A ferrite magnet structure with a flux density of 1.87 T ensures strong motor control and high sensitivity. The recommended high pass crossover is 900 Hz with a 12 dB per octave slope to achieve full power handling and optimal reliability.
With a frequency response from 800 Hz to 17,000 Hz at minus 10 dB, the WG2500Py SLIM delivers clear and articulate high frequencies. Its compact dimensions, including an overall depth of 146.5 mm and a mounting depth of 138.5 mm, allow easy integration into space-conscious enclosures, making it a practical choice for professional sound reinforcement and advanced DIY audio projects.
