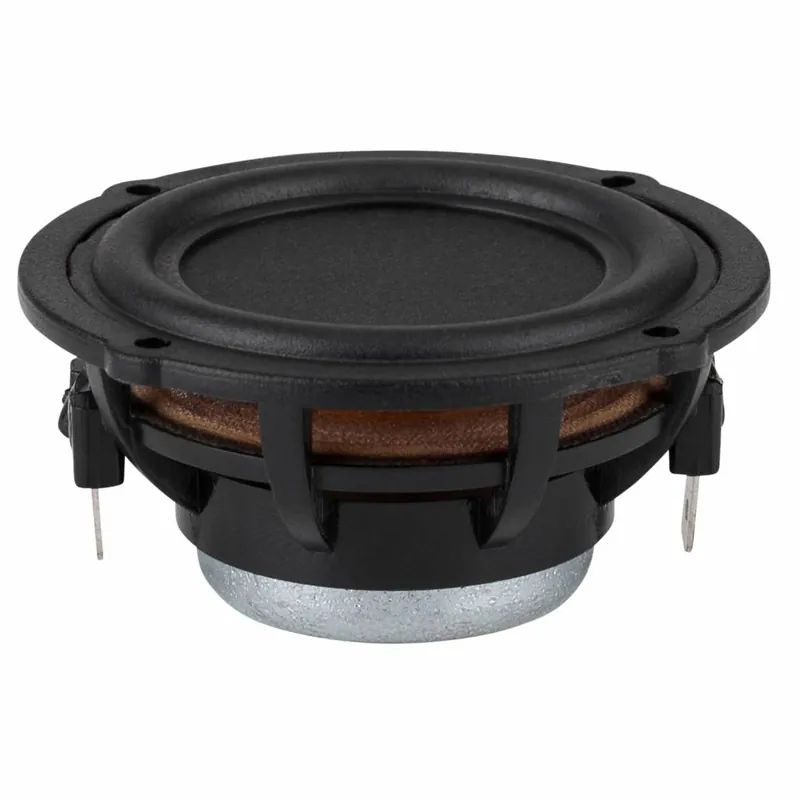

Name: Professionale Tectonic Elements TEBM35C10-4 BMR Woofer a Gamma Completa
Brand: Tectonic Elements
SKU: SK0009941
Price: 10.72 EUR
Availability: InStock

Descrizione

Descrizione del prodotto

Descrizione del prodotto Tectonic Elements TEBM35C10-4 BMR Woofer a Gamma Completa

The TEBM35C10-4 BMR 2" full-range is an audio drive unit with an extended frequency response and extremely wide directivity. It combines the benefits of Tectonic Elements bending-wave technology and pistonic modes of operation.

Highlights

Blends pistonic and resonant mode output for wide frequency response
The small form-factor is ideally suited for compact audio enabled products
Nearly 180° dispersion all the way up to 20,000 Hz
Only 2" diameter and 1" deep allows mounting almost anywhere

Product details

Tectonic Elements TEBM35C10-4 BMR 2" Full-Range Speaker 4 Ohm

By combining the benefits of bending-wave technology and pistonic modes of operation, Tectonic Element's TEBM35C10-4 BMR 2" full-range delivers extended frequency response and extremely wide directivity. The small form-factor is ideally suited for compact products that require a full-range drive unit, room filling sound and a high performance acoustic solution. The small size, extended response, and low cost also make the TEBM35C10-4 an excellent choice for use in higher output line array designs. This unique driver can be used for anything from small handheld speakers, toys and displays to larger TV speaker bars, Wi-Fi speaker systems, and even compact sound reinforcement systems.

Mostra meno

Specifiche

Numero dell'articolo:

TEBM35C10-4

EAN

0848864043845

Diametro nominale :2"
Gestione della potenza (RMS) :10 Watts
Gestione della potenza (max) :20 Watts
Impedenza (Z) :4 ohms
Sensibilità (SPL a 1m / 2,83V) :83 dB
Risposta in frequenza :100 to 20,000 Hz
Diametro della bobina mobile :0.80"
Resistenza DC (Re) :4.2 ohms
Induttanza della bobina mobile (Le) :0.05 mH
Frequenza di risonanza (Fs) :145 Hz
Fattore di merito meccanico (Qms) :3.84
Fattore di merito elettromagnetico (Qes) :1.06
Fattore di merito totale (Qts) :0.83
Massa del diaframma incl. la massa dell'aria (Mms) :1.11g
Cedevolezza meccanica della sospensione (Cms) :1.085 mm/N
Superficie del cono (Sd) :11.04 cm²
Prodotto BL (BL) :2.0 Tm
Volume equivalente di cedevolezza (Vas) :0.0063 ft.³
Escursione lineare massima (Xmax) :2.5 mm
Materiale della sospensione :Rubber
Materiale del cestello / telaio :Polymer
Materiale del magnete :Neodymium
Diametro esterno complessivo :2.04"
Profondità complessiva :0.98"
Diametro del ritaglio del pannello frontale :1.69"
Diametro del cerchio dei fori di montaggio :1.9"
# Numero di fori di montaggio :4
Volume per cassa sigillata :0.016 ft.³
Frequenza di risonanza della cassa sigillata (F3) :154 Hz
Volume per cassa reflex :0.026 ft.³
Frequenza di risonanza della cassa reflex (F3) :85 Hz
