Descrizione
Descrizione del prodotto
Vantaggi e svantaggi
Secondo i nostri esperti
- Great bass response down to 50Hz
- Big sound
- Very efficient
- Installation depth can be limiting
Descrizione del prodotto Peerless by Tymphany SLS-85S25CP04-04 Woofer Medio-Bassi
With a low Fs and 10.2 mm of excursion, the 3.5" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 2000 Hz ensures low distortion and accuracy throughout the midrange frequencies.
Highlights of the Peerless SLS-85S25CP04-04 Bass-midwoofer
- Sensitivity (SPL at 1m / 2.83V): 86 dB
- Resonant Frequency (Fs): 73 Hz
- Damped paper cone with rubber surround provides natural response
- Dual magnet design concentrates the magnetic field on the voice coil gap
Product details Peerless SLS-85S25CP04-04 Bass-midwoofer

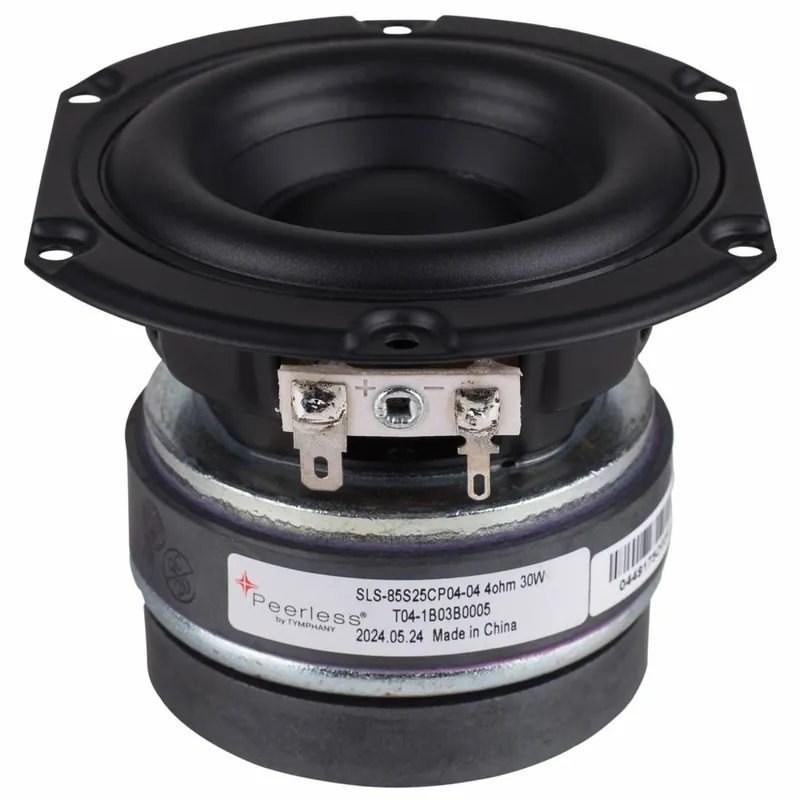

Peerless by Tymphany SLS-85S25CP04-04 3.5" Paper Cone Woofer
The SLS line combines high quality performance with an affordable design. This 3.5 inch 4member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.
FAQ about the Peerless SLS-85S25CP04-04 Bass-midwoofer
What is the primary application of the SLS-85S25CP04-04 Bass-midwoofer?
The SLS-85S25CP04-04 is versatile, suitable for:
- Compact speaker designs.
- Multimedia speaker systems.
- Portable audio projects.
- Small bookshelf or satellite speakers.
- 2-way or 3-way systems as a bass-midrange driver.
How does the Peerless SLS-85S25CP04-04 Bass-midwoofer perform in terms of bass reproduction?
The SLS-85S25CP04-04 provides solid bass performance for its size, with a lower frequency limit of 75 Hz. While it won't deliver deep sub-bass, it offers clean and punchy bass in small enclosures. For full-range systems, pairing it with a subwoofer is recommended for extended low-frequency output.
What type of enclosure works best with the SLS-85S25CP04-04?
This driver performs well in:
- Sealed Enclosures: For tighter bass response.
- Vented (Ported) Enclosures: For extended low-frequency output, tuned to its resonant frequency (Fs). The compact size allows it to be used in very small enclosures, making it ideal for portable or space-constrained designs.
Peerless manufacturing code: T04-1B03B0005
