Descrizione del prodotto

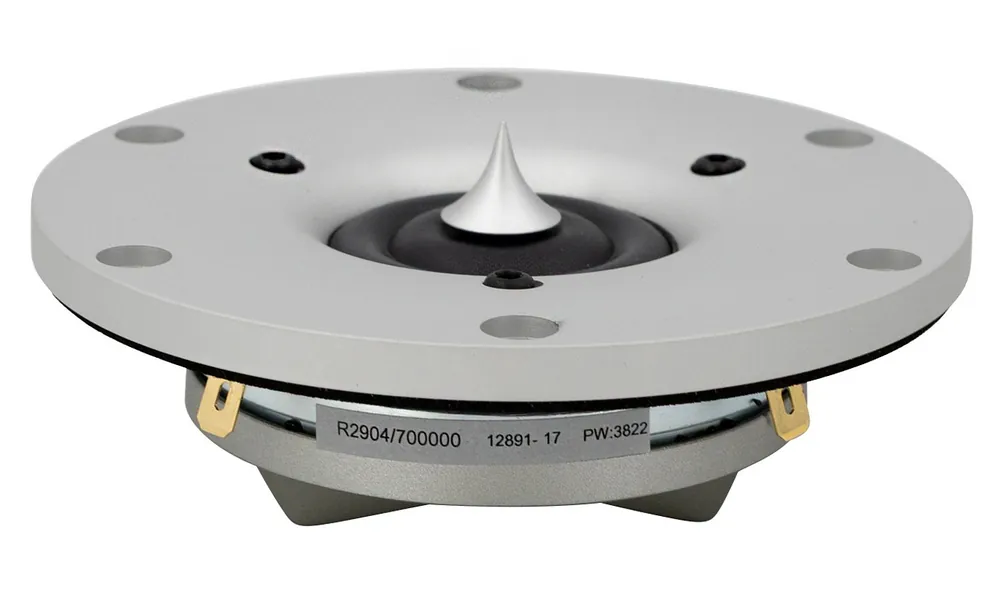

Descrizione del prodotto Scan-Speak Revelator R2904/700000 Tweeter Ring Radiator
Highlights
- 1" Ring Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Non Resonant Alu Rear Chamber
- Patented Phase Plug Design
- Large Ring Neo Magnet for High Output
- Anodized Mashined Alu Face Plate
Product details
Scan-Speak Revelator R2904/700000 1" Ring Radiator
The Scan-speak R2904-700000 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radiating area is now concentrated around the voice coil.
This offers more control and reduces distortion and loss that occur at the center of the dome on dome tweeters. The phase plug also acts as a wave guide, reducing high frequency cancellations. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.
Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³BL Product (BL): 2.8 TmMechanical Compliance of Suspension (Cms): 0.31 mm/NDiaphragm Mass Inc. Airload (Mms): 0.3 gMaximum Linear Excursion (Xmax): 0.2 mmSurface Area of Cone (Sd): 5.6 cm2
