Descrizione del prodotto

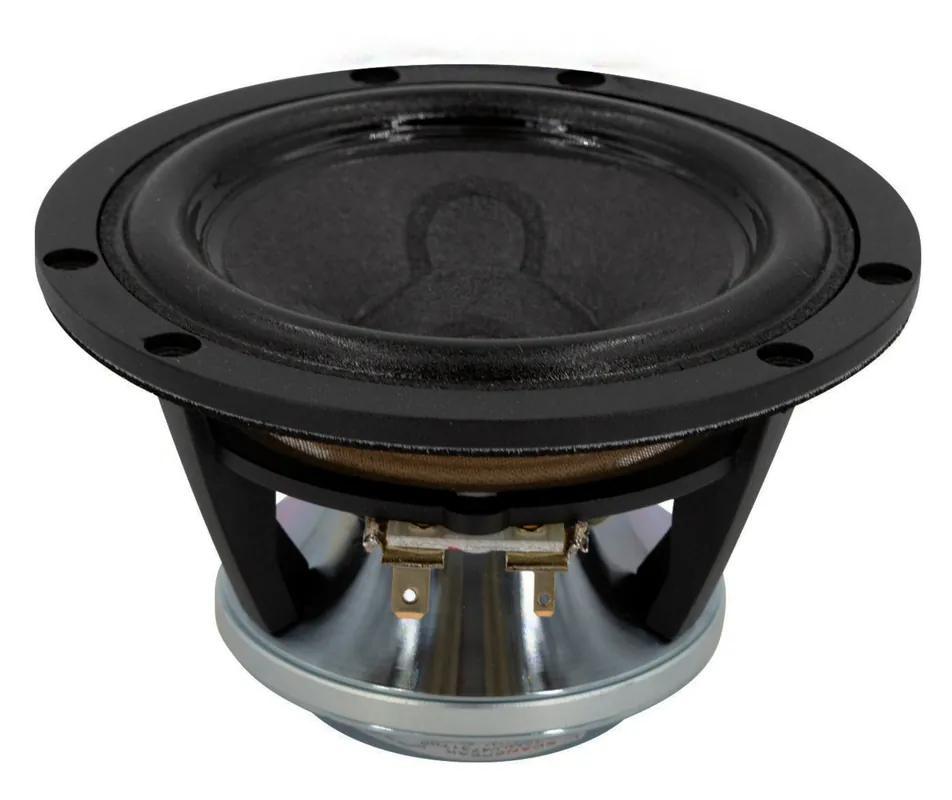

Descrizione del prodotto Scan-Speak Illuminator 12MU/4731T00 Woofer Medio-Bassi
Highlights
- Neodymium magnet
- Under hung motor system
- One piece cone and dust cap, full cone technology
- Very Wide Frequency Response 100-10KHz
- Patented Symmetrical Drive (SD-3)
- Low-loss Linear Suspension
- Foam surround
- High Output 90dB @ 2,83V
Product details
Scan-Speak Illuminator 12MU/4731T00 4" Woofer
The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to guide the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.
The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.
