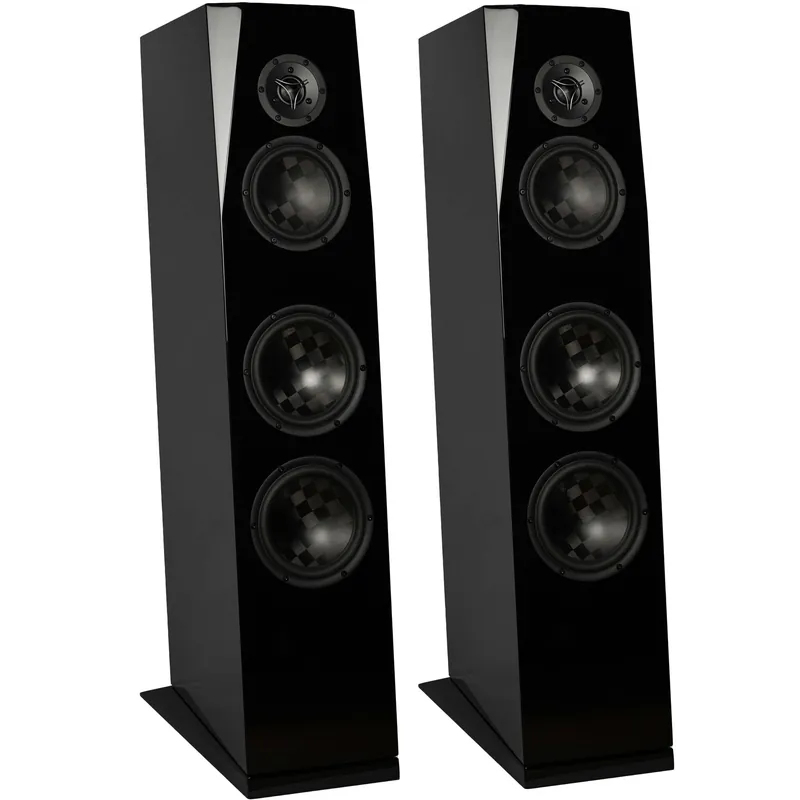

Name: Offerta Limitata SB Acoustics SASANDU TX Black High-Gloss Tower Kit Altoparlante with TeXtreme drivers
Brand: SB Acoustics
SKU: SK0009039
Price: 2399.98 EUR
Availability: InStock

Descrizione

Descrizione del prodotto

Descrizione del prodotto SB Acoustics SASANDU TX Tower Kit Altoparlante

The SB Acoustics SASANDU TX is a premium 3-way floor-standing speaker kit that combines advanced TeXtreme® driver technology with a meticulously engineered crossover network to deliver exceptional audio performance.

Highlights of the SB Acoustics SASANDU TX Tower Speaker Kit

Equipped with a 29mm SATORI TW29TXN-B-8 TeXtreme® dome tweeter for extreme resolution and dynamics with a relaxed presentation.
Features a 6½ SATORI MW16TX-4 TeXtreme® cone midwoofer housed in a dedicated sealed chamber for open midrange reproduction.
Includes dual 7½ SATORI MW19TX-8 TeXtreme® cone woofers delivering deep, tight, and musical bass.
Elegantly inclined cabinet with a faceted baffle to minimize diffraction and ensure optimal time alignment.
Open-source design allows for customization and DIY assembly.

Product details SB Acoustics SASANDU TX Tower Speaker Kit

SB Acoustics SASANDU TX Tower Speaker Kit

The SB Acoustics SASANDU TX is a high-fidelity DIY speaker kit designed for audiophiles seeking top-tier performance. It utilizes TeXtreme® technology across its tweeter, midwoofer, and woofers, delivering a balanced and natural sound. The innovative crossover design ensures seamless integration between drivers, resulting in a coherent and lifelike audio experience. The cabinet is masterfully crafted with strategic internal bracing to distribute vibrations and reduce coloration, while a slanted internal partition minimizes standing waves. The oversized rear-firing port ensures uncompressed bass even at high listening levels. As an open-source kit, the SASANDU TX offers flexibility for enthusiasts to customize and build their dream speaker system while benefiting from SB Acoustics carefully developed plans and documentation.

Mostra meno

Specifiche

Numero dell'articolo:

SASANDU-TX-Black-HG-Kit

EAN

9508366356263

Diametro nominale :Woofers 7½", Midrange 6½", Tweeter 1"
Gestione della potenza (RMS) :Woofers each 70 Watts, Midrange 60 Watts, Tweeter 80 Watts
Impedenza (Z) :Woofers 8 , Midrange 4 , Tweeter 4
Sensibilità (SPL a 1m / 2,83V) :Woofers 90 dB, Midrange 90.5 dB, Tweeter 96 dB
Diametro della bobina mobile :Woofers 39 mm, Midrange 36 mm, Tweeter 29 mm
Resistenza DC (Re) :Woofers 6.0 , Midrange 3.4 , Tweeter 3.0
Induttanza della bobina mobile (Le) :Woofers 0.20 mH, Midrange 0.15 mH, Tweeter 0,02 mH
Frequenza di risonanza (Fs) :Woofers 33 Hz. Midrange 29 Hz. Tweeter 650 Hz.
Fattore di merito meccanico (Qms) :Woofers 6.47. Midrange 5.0, Tweeter 1.62
Fattore di merito elettromagnetico (Qes) :Woofers 0.35, Midrange 0.29, Tweeter 0.65
Fattore di merito totale (Qts) :Woofers 0.33, Midrange 0.27, Tweeter 0.46
Massa del diaframma incl. la massa dell'aria (Mms) :Woofers 15.6 g, Midrange 12.6 g. Tweeter 0.51 g
Superficie del cono (Sd) :Woofers 158 cm², Midrange 119 cm², Tweeter 9.6 cm²
Prodotto BL (BL) :Woofer 7.5Woofers 7.5 Tm, Midrange 5.2 Tm, Tweeter 3.1 Tm Tm, Midrange 5.2 Tm, Tweeter 3.1 Tm
Volume equivalente di cedevolezza (Vas) :Woofers 53.4 Liters, Midrange 48 Liters
Escursione lineare massima (Xmax) :Woofers 13.4 mm (p-p), Midrange 12 mm (p-p), Tweeter 0.5 mm (p-p)
Diametro esterno complessivo :Woofers 187 mm, Midrange 165 mm, Tweeter 103.8 mm
Profondità complessiva :Woofers 101.4 mm, Midrange 86.1 mm, Tweeter 27.5 mm
Diametro del ritaglio del pannello frontale :Woofers 163 mm, Midrange 140.3 mm, Tweeter 70 mm
# Numero di fori di montaggio :Woofers, Midrange and Tweeter 6
Diametro dei fori di montaggio :Woofers 4.3 mm, Midrange 4.3 mm, Tweeter 4.2 mm
