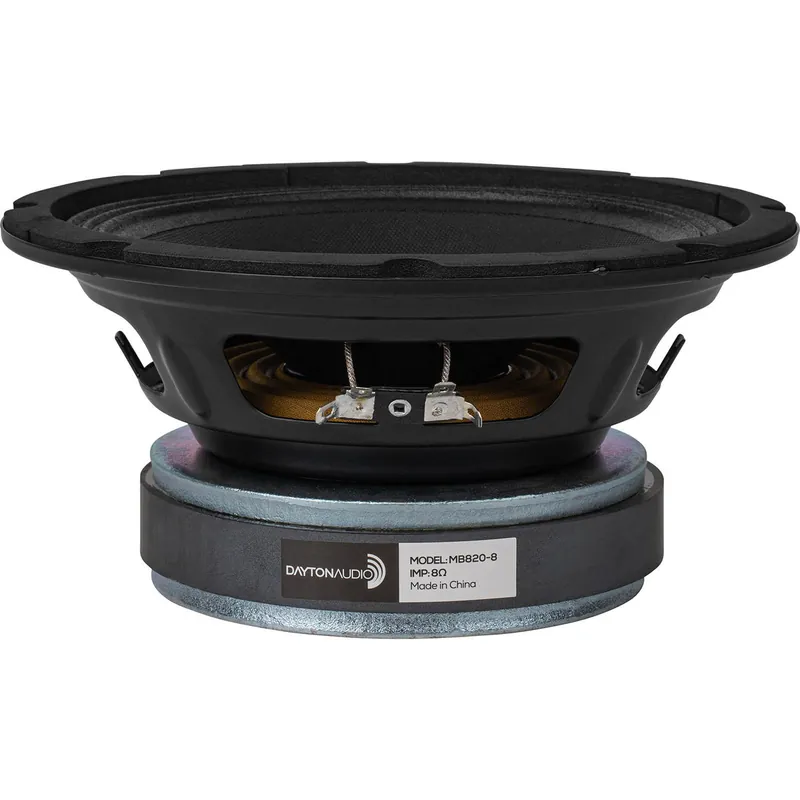

Offerta Limitata Dayton Audio MB820-8 Midbass Woofer

Il prezzo originale era: 69,95 €.Il prezzo attuale è: 34,98 €.

Pagamenti sicuri Carta, PayPal e checkout protetto
Spedizione gratuita da 58,00 € Consegna rapida in tutta Italia
Supporto rapido Assistenza su ordini e spedizioni
COD: SK0004803 Categoria: Tag:

Descrizione

Descrizione del prodotto

Descrizione del prodotto Dayton Audio MB820-8 Midbass Woofer

Built for high impact and low distortion, the MB820-8 8 midbass is a great choice for use in dynamic, high output 2-way and 3-way designs. With a damped paper cone, treated cloth spider, and powerful ferrite motor these drivers will deliver incredible clarity and detail even when pushed to extreme SPL levels. Suitable for use in professional speakers, studio monitors, and even car audio systems, these are incredibly flexible mid-bass drivers.

Highlights

  • 94dB sensitivity and 200 watt continuous power handling allows the incredible output
  • 2 voice coil and 40 oz ferrite magnet with vented pole-piece
  • Lightweight paper cone and cloth surround
  • Wide 100Hz-7.5kHz usable frequency response
  • Great for 2 or 3-way pro audio, car, or home hi-fi systems
  • Excellent choice for use in musical instrument applications

Product details

Dayton Audio MB820-8 8" Professional High Power Midbass Driver 8 Ohm

Dayton Audios MB820-8 8 professional mid-bass driver is engineered to provide maximum impact output while keeping distortion to a minimum. This mid-bass uses a powerful, vented ferrite magnetic motor and lightweight paper cone with cloth surround to achieve high SPL and loads of clarity. While optimized for 2-way pro audio systems, this driver is versatile enough for car audio and home hi-fi mid-bass work, and even musical instrument applications, such as bass guitar and keyboard. The MB820-8 is an 8 ohm 8 with a 2 voice coil and a 40oz ferrite magnet design. It offers a lot of bang-for-the-buck at 94dB SPL and 200 watts of continuous power handling. The MB820-8 has a wide and smooth usable frequency response from 100Hz-7.5kHz.

Show more

Mostra meno

Specifiche

Numero dell'articolo:

MB820-8
EAN

0848791008061
Serie del woofer :Dayton Audio PA series
Tipo di woofer :Midbass Driver
Diametro nominale :8"
Gestione della potenza (RMS) :200 Watts
Gestione della potenza (max) :400 Watts
Impedenza (Z) :8 Ohm
Sensibilità (SPL a 1m / 2,83V) :94 dB
Risposta in frequenza :100 to 7,500Hz
Diametro della bobina mobile :2"
Resistenza DC (Re) :5.26
Induttanza della bobina mobile (Le) :1.04mH
Frequenza di risonanza (Fs) :69 Hz
Fattore di merito meccanico (Qms) :3.83
Fattore di merito elettromagnetico (Qes) :0.52
Fattore di merito totale (Qts) :0.46
Massa del diaframma incl. la massa dell'aria (Mms) :20.9g
Cedevolezza meccanica della sospensione (Cms) :0.26mm/N
Superficie del cono (Sd) :208.9cm²
Prodotto BL (BL) :9.57T·m
Volume equivalente di cedevolezza (Vas) :0.56ft³
Escursione lineare massima (Xmax) :4 mm
Materiale del cono / diaframma :Paper
Materiale della sospensione :Cloth
Materiale del filo della bobina mobile :CCA
Materiale del cestello / telaio :Steel
Materiale del magnete :Ferrite
Diametro esterno complessivo :8.22"
Profondità complessiva :3.6"
Diametro del ritaglio del pannello frontale :7.13"
# Numero di fori di montaggio :8
Volume per cassa sigillata :0.3ft³
Frequenza di risonanza della cassa sigillata (F3) :120Hz
Volume per cassa reflex :0.7ft³
Frequenza di risonanza della cassa reflex (F3) :61Hz
