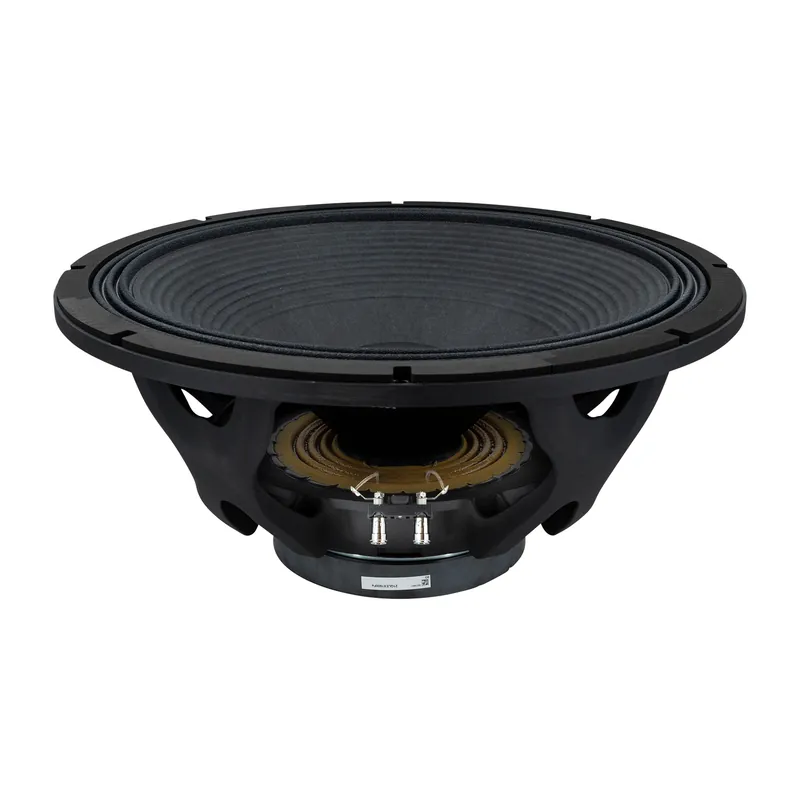

Offerta Lampo Beyma 21QLEX1600Fe Subwoofer

Il prezzo originale era: 589,95 €.Il prezzo attuale è: 235,98 €.

Pagamenti sicuri Carta, PayPal e checkout protetto
Spedizione gratuita da 58,00 € Consegna rapida in tutta Italia
Supporto rapido Assistenza su ordini e spedizioni
COD: SK0003794 Categoria: Tag:

Descrizione

Descrizione del prodotto

Descrizione del prodotto Beyma 21QLEX1600Fe Subwoofer

The Beyma 21QLEX1600Fe is a rugged 21 low-frequency transducer built for uncompromising sub-bass performance in professional audio systems. Combining high power handling, a robust ceramic motor structure, and advanced cooling via Beymas Malt Cross® technology, this driver ensures sustained output and minimal distortion even under extreme load.

Highlights of the Beyma 21QLEX1600Fe

  • 1,600W AES / 3,200W program power with 98 dB sensitivity
  • ±13 mm Xmax and 60 mm peak-to-peak mechanical excursion
  • Ceramic magnetic structure with aluminium demodulation ring
  • Weatherproof cone and double silicone spider for durability

Product details Beyma 21QLEX1600Fe

Beyma 21QLEX1600Fe low-frequency subwoofer transducer

The Beyma 21QLEX1600Fe is a flagship 21-inch subwoofer from the QLEX Series, tailored for direct radiation and band-pass enclosures. With its 4 QUATTRO copper voice coil and FEA-optimized ceramic magnet structure, it achieves high SPL output and refined low-end detail. The integrated aluminium demodulating ring and Malt Cross® cooling system drastically reduce power compression and distortion. Its weather-resistant cone and dual silicone spider offer long-term reliability, making it ideal for outdoor or touring applications. Delivering tight and extended bass from 301000 Hz, and capable of operating in enclosures as small as 170 liters (Fb = 38 Hz), the 21QLEX1600Fe is a top-tier solution for high-output subwoofer systems where precision, power, and endurance are critical.

Show more

Mostra meno

Specifiche

Numero dell'articolo:

21QLEX1600Fe
EAN

8435469044388
Serie del woofer :Beyma QLEX series
Tipo di woofer :subwoofer
Diametro nominale :21"
Gestione della potenza (RMS) :1600 Watts
Gestione della potenza (max) :3200 W
Impedenza (Z) :8 Ohm
Sensibilità (SPL a 1m / 2,83V) :98 dB
Risposta in frequenza :30-1000 Hz
Diametro della bobina mobile :101.6 mm
Resistenza DC (Re) :5.4 Ohm
Induttanza della bobina mobile (Le) :4 mH
Frequenza di risonanza (Fs) :30 Hz
Fattore di merito meccanico (Qms) :4.5
Fattore di merito elettromagnetico (Qes) :0.30
Fattore di merito totale (Qts) :0.28
Massa del diaframma incl. la massa dell'aria (Mms) :388g
Cedevolezza meccanica della sospensione (Cms) :72 µm / N
Superficie del cono (Sd) :0.1734 m²
Volume di spostamento (Vd) :2254 cm³
Prodotto BL (BL) :36.4 N/A
Volume equivalente di cedevolezza (Vas) :309 l
Escursione lineare massima (Xmax) :13 mm
Perdite meccaniche del driver (Rms) :16.2 kg/s
Materiale del magnete :ferrite
Diametro esterno complessivo :545 mm
Profondità complessiva :266 mm
Diametro del ritaglio del pannello frontale :492 mm
Diametro del cerchio dei fori di montaggio :522,5 mm
