- Weatherproof cone with reatment for borth sides
- Optimized for high performance bass or mid-bass applications

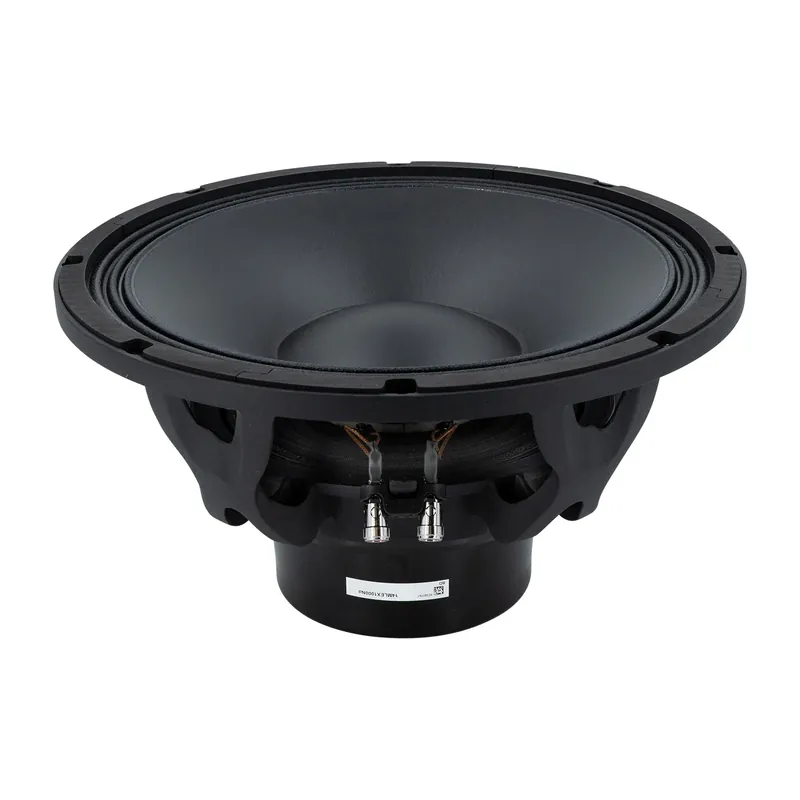

Descrizione del prodotto Beyma 14MLEX1000Nd Bass-midwoofer
The Beyma 14MLEX1000Nd is a 14 high-efficiency neodymium transducer designed for advanced bass and midbass applications. Featuring a powerful 4 DUO voice coil and patented Malt Cross® cooling, it offers ultra-low distortion and remarkable thermal performance.
Highlights of the Beyma 14MLEX1000Nd
- 1,000 W AES / 2,000 W program power handling with 99 dB sensitivity
- 4 in/out copper DUO voice coil with Malt Cross® Cooling System
- Neodymium FEA-optimized magnetic circuit with aluminum demodulating ring
- ±11 mm Xmax and weatherproof cone for extreme linear excursion and durability
Product details Beyma 14MLEX1000Nd
Beyma 14MLEX1000Nd Low & Mid Frequency Transducer
The Beyma 14MLEX1000Nd is a professional-grade 14-inch transducer purpose-built for high-output bass and midbass performance. Engineered with a massive 4 DUO double-layer in/out copper voice coil and powered by an FEA-optimized neodymium magnet structure, this driver delivers up to 1,000 W AES (2,000 W program) while maintaining high efficiency and ultra-low distortion. It achieves a sensitivity of 99 dB (1W/1m), making it ideal for demanding sound reinforcement systems. The transducer incorporates Beymas exclusive Malt Cross® cooling system to minimize power compression and ensure long-term thermal stability. Its mechanical design includes a weather-treated cone, Conex spider, and a peak-to-peak excursion limit of 60 mm, offering extended displacement and superior durability. The high Bl factor of 26.5 N/A and an Xmax of ±11 mm further enhance its linear behavior, ensuring clear and punchy response even at high SPLs. With a net weight of 9.2 kg and a compact depth of 191 mm, the 14MLEX1000Nd offers exceptional performance for compact yet powerful loudspeaker configurations targeting professional applications in live sound and fixed installations.
