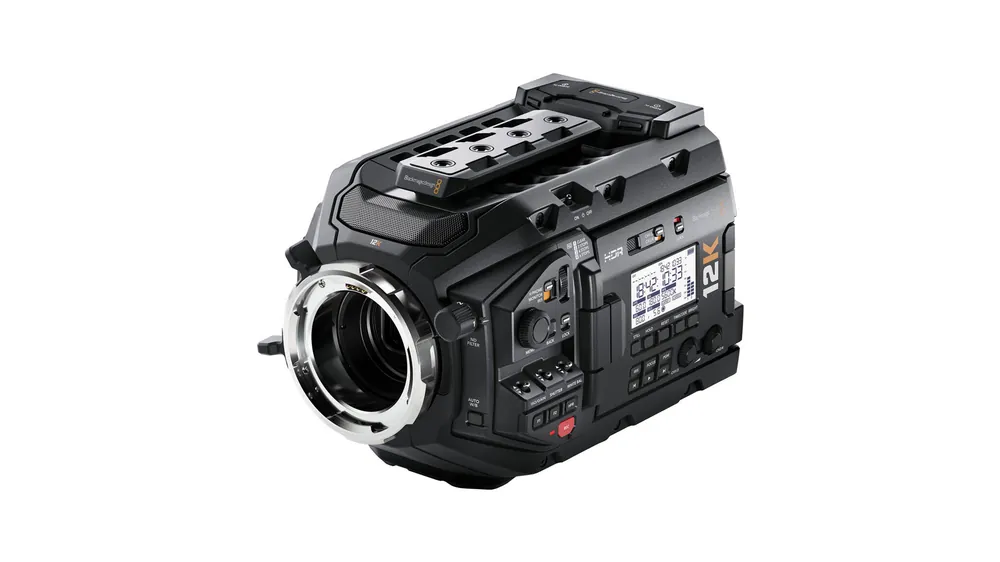

Related videosSpecifications The Blackmagic URSA Mini Pro 12K OLPF with PL mount revolutionizes digital film with a 12,288 x 6480 Super 35 12K sensor and 14 stops of dynamic range. This third-generation URSA Mini Pro boasts new color science and captures 80 megapixels per frame in Blackmagic RAW. It offers built-in ND filters, interchangeable lens mount and dual recording slots for CFast and SD cards. It also allows you to record directly to flash disks or SSDs thanks to the SuperSpeed USB-C connection.
| Weight | 2,55 kg |
| Dimensions | 15,04 x 22,3 x 14,7 cm |
| Effective sensor size | 27,03 mm x 14,25 mm (Super 35) |
| Lens Mount | PL mount included. EF and F optional |
| Dynamic range | 14 stop |
| Resolution | 12,288 x 6480 (12K DCI) 11,520 x 6480 (12K 16:9) 12,288 x 5112 (12K 2.4:1) 7680 x 6408 (12K anamorphic) 8192 x 4320 (8K DCI) 7680 x 4320 (8K 16:9) 8192 x 3408 (8K 2.4:1) 5120 x 4272 (8K anamorphic) 6144 x 3240 (6K Super16) 4096 x 2160 (4K Super16) 4096 x 2160 (4K DCI) 3840 x 2160 (4K 16:9) 4096 x 1704 (4K 2.4:1) 2560 x 2136 (4K anamorphic) |
| Frame rate | 23.98, 24, 25, 29.97, 30, 50, 59.94 e 60 fps |
| High Speed Frame Rates | 12K 17:9 up to 60 fps at full sensor 12K 2.4:1 up to 75 fps 8K DCI up to 120 fps at full sensor 4K DCI up to 120 fps at full sensor 8K 2.4:1 and 4K 2.4:1 up to 160 fps 6K Super 16 up to 120 fps 4K Super 16 up to 240 fps |
| Built in ND Filters | Four-notch wheel: 2 / 4 / 6 stops and no filter |
| Focus | Focus button to trigger autofocus using servo focus compatible lenses |
| Iris control | Physical wheel and slider on touch screen for manual aperture adjustment with electronically controlled lenses. Iris button for instant self-adjustment with compatible lenses. Automatic average exposure for shooting in Video mode. |
| Screen dimensions | 4 inch |
| Screen Type | LCD capacitive touchscreen |
| Codec | Blackmagic RAW, constant bitrate 5:1 Blackmagic RAW, constant bitrate 8:1 Blackmagic RAW, constant bitrate 12:1 Blackmagic RAW, constant bitrate 18:1 Blackmagic RAW, constant quality Q0 Blackmagic RAW, constant quality Q1 Blackmagic RAW, constant quality Q3 Blackmagic RAW, constant quality Q5 |
| Standard | Standard video HD 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Standard video Ultra HD 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Connections | 1 x 12G-SDI video input 1 x 12G-SDI video output, 1 x 3G-SDI for monitoring 2 x XLRs switchable between mic/line and AES levels. They support phantom power 1 x 3.5 mm jack compatible with iPhone headset microphone for talkback 1 x Tri-sync, black burst, timecode 1 x LANC 2.5 mm for recording start/stop. Aperture and focus control with compatible lenses 1 x USB-C 3.1 Gen 2 with Power Delivery for recording to external drives 1 x USB-C for updating software |
| Power Supply | 1 x External 12V 12-pin molex connector for battery plate at rear |
| Included software | Blackmagic OS DaVinci Resolve Studio for Mac and Windows (activation code included) Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook plug-in Blackmagic RAW SDK Blackmagic RAW Speed Test |
| Whats in the box | 1 x Blackmagic URSA Mini Pro 12K OLPF 1 x Dust cover 1 x PL lens mount 1 x Power supply 1 x Activation code for DaVinci Resolve Studio |
