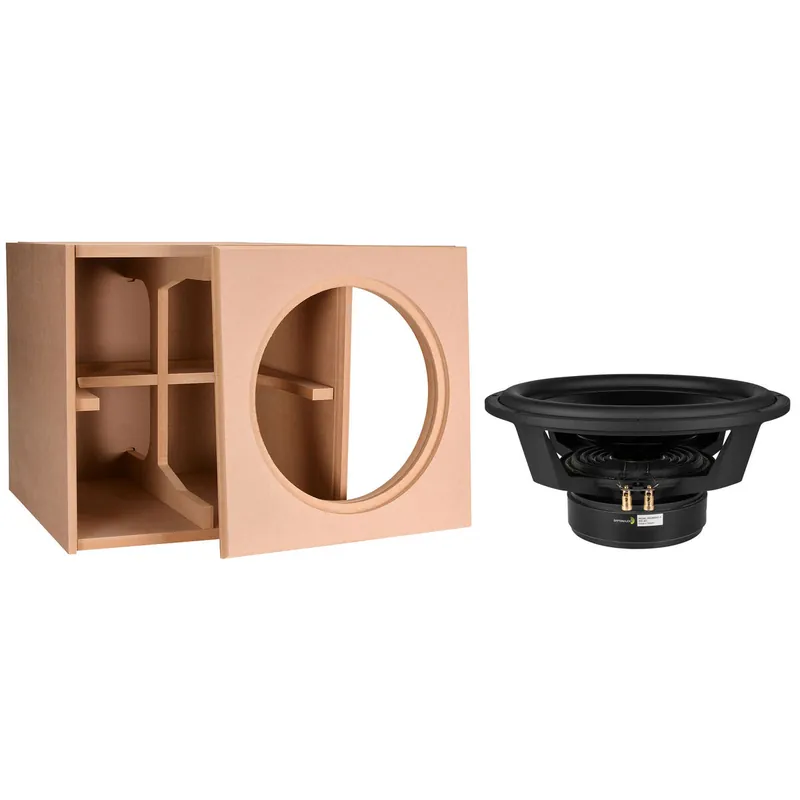

Descrizione del prodotto Dayton Audio 15" Reference Kit Subwoofer
Build the ultimate in high fidelity bass reproduction using this superior subwoofer cabinet and the Dayton Audio RSS390HO-4 Reference Series 15" High Output subwoofer.
Highlights
- 85 liter cabinet made of 18 mm MDF panels with a 36 mm thick front baffle
- CNC-machined dadoes, subwoofer cutout and recess, and a unique bracing system that increases cabinet rigidity
- Dayton Audio 15" Reference Series High Output subwoofer included
Product details
Dayton Audio 15" Reference Series HO Subwoofer and Cabinet Bundle
The Dayton Audio Reference Series subwoofers take the quality and performance of the much-acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure.
This particular cabinet is designed specifically for the Dayton Audio 15" Reference Series High Output subwoofer, but works for any subwoofer with an overall diameter of 390 mm or less, and a cutout requirement of 357 mm or less. The sealed enclosure design creates a critically damped subwoofer system when used with the Dayton Audio RSS390HO-4.
During the CNC manufacturing process, rabbets dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 18 mm rabbeted extensions with recesses to perfectly install the first piece of the two-part, double-thick baffle.
The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 15" High Output Reference Series subwoofer. All that's left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"
Note: Here is a list of what you need to build this subwoofer-cabinet bundle that's not included and where to find it on our webshop:
Passive: When building passive, the kit requires a low passfiltered signal.
- External amps: Dayton Audio SA1000 / Dayton Audio APA1200DSP
- Speaker wire
- Binding posts
Active:
- Plate amps: Dayton Audio SPA500 / Dayton Audio SPA1000
- Scribing for cutout: Yes
- Braces have to be cut out too
Needed for both:
- Screws: 8 x 081-425
- Feet (optional)
- Coating(optional)
- Damping material (optional for tuning the response): Visaton 5070
Specifications:
- Mounting holes (# and size in mm): 8 x 6,5 mmØ
- Panel thickness: 18 mm
- Front baffle thickness: 36 mm
- Panel material: Medium Density Fiberboard (MDF)
- External dimensions: 488 x 488 x 508 mm.
